Listrak / Wonderment Integration Setup

Brian Whalley Updated by Brian Whalley

Setting Up the Wonderment / Listrak Integration

Today, Listrak’s API does not support some types of data objects, which means Wonderment’s triggers can link to a tracking page and contain shipping update information, but not precise data on what line items are in the shipment(s).

We recommend:

Using the Listrak / Shopify integration for your Shipment Confirmed event, or the native Shopify email for the Shipment Confirmed event. This will allow you to present a rich Shipment Confirmation message with the shipment contents. If you are already using this email, you can update it to link to your Wonderment tracking page.

You’ll use the Wonderment triggers for the other events. For example, the shipment error statuses, where you want to communicate that an error occurred and direct them to instructions.

Setting Up Wonderment-powered messages

You’ll use the Wonderment triggers for the other events. For example, the shipment error statuses, where you want to communicate that an error occurred and direct them to instructions.

  • You can link to the tracking page from these messages, which will show the full shipment contents.

To integrate the other events, you’ll need to set up a new Cross Channel integration in Listrak. The steps are detailed below:

Steps:

  1. Log into Listrak
  2. Go to Integrations → Integration Management

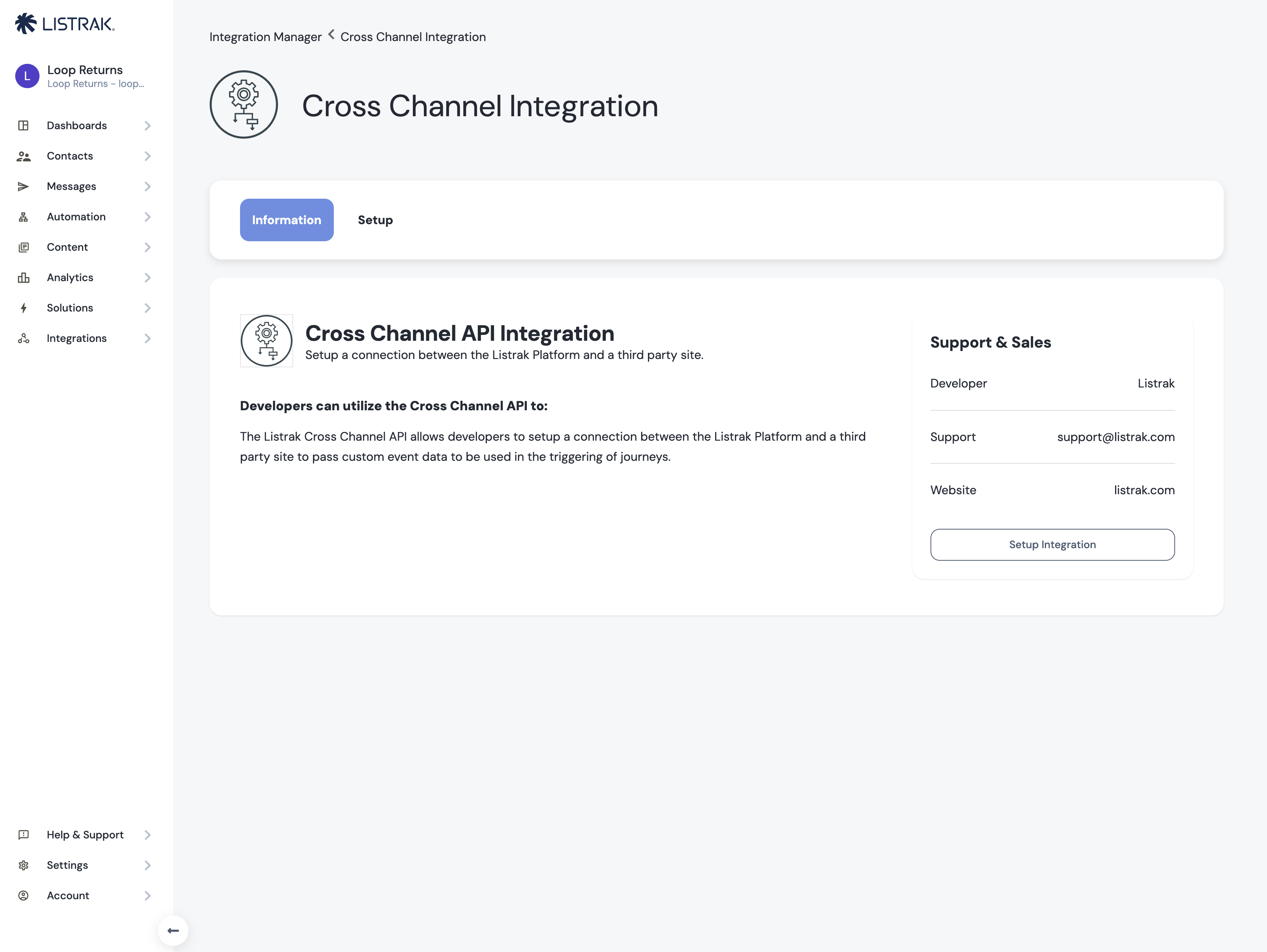

Click “New Integration”. Create a new Cross Channel API integration.

Name it Wonderment. Disable IP Whitelisting.

Save. Your client ID and secret will fill in. The IP Address Whitelisting box might uncheck. That’s okay.


Copy the client ID and Secret down in a text document or similar, we’ll need them later. We must define the Wonderment events in Listrak before we can save these values into Wonderment.

Define Wonderment custom events following this table. These event names must match exactly. You must create all of the events, even if you don’t intend to use them right away. The list is provided in a table below for your convenience when copying and pasting.

Wonderment - Shipment Created

When a label has been created with a shipping carrier

Wonderment - Label Cancelled

When a label has been cancelled with the shipping carrier

Wonderment - Carrier Picked Up

When an order is first marked In Transit by the carrier.

Wonderment - In Transit

For each in-transit scan the package has.

Wonderment - Out For Delivery

When the carrier confirms the package has been handed off for delivery

Wonderment - Ready for Pickup

When an order has been marked ready for customer pickup by the shipping carrier, such as at a local office or postal facility.

Wonderment - Shipment Delivered

When the delivery scan has occurred for a package

Wonderment - Returned to Sender

When a package has been sent back to the origin facility because it was undeliverable, damaged, or otherwise can't be completed.

Wonderment - Attempted Delivery

If a package couldn't be delivered and was held by the carrier for re-delivery.

Wonderment - Delivery Error

In case of a permanent delivery error, such as a non-existent address, or a package is lost or damaged at the carrier.

Wonderment - Shipment Stalled

When a package hasn't made progress in the carrier network for a certain period of time, and is likely to be delayed.

  1. For each event, you will need to define the properties to capture and make available for the email template. Click into each event to define the properties. You can safely skip event properties you do not intend to use. You can also come back and edit this later if you need to add more. It’s also fine to just add a few for testing the integration, and then add more when you’re ready to use them.
  2. When this is complete, your events will have a built out list of variables on each one. Similar to the event names above, these property names must match the table below precisely. The table is printed below for ease of copy/paste.

Event Data Property Name

Example Data

Notes

CarrierName

ups

Not usually used in email templates (Often this is what a 3PL inputs into Shopify)

CarrierNameFriendly

Australia Post

CurrentStatus

SHIPMENT_CREATED

IN_TRANSIT

OUT_FOR_DELIVERY

DELIVERED

this is an incomplete list of possible values

DeliveredAt (optional)

11/09/2022 04:57

Only in Shipment Delivered

(Can be formatted in Listrak templates - documentation)

DestinationCountryCode

US

EstimatedPackageDelivery

08/27/2022

An ETA Provided by the carrier

MM/DD/YYYY

EventDate

2022-09-07T20:43:00.000Z

A timestamp record of when the carrier reports the event occurring. (Can be formatted in Listrak templates - documentation)

FulfillmentCreatedDate

2022-09-19T15:46:35.000Z

UTC formatted timestamp. (Can be formatted in Listrak templates - documentation)

HoursStalled (optional)

25

Only in Shipment Stalled events.

The number of hours since the last reported movement of the shipment

NotUpdatedSince (optional)

9/1/2020 2:46 PM ET

Only in Shipment Stalled events

OrderCreatedDate

OrderNumber

#AD12345

The Shopify Order Name

OrderID

2113541212

The Shopify Order ID

ServiceLevel

Priority Mail

2nd Day Air®

this is an incomplete list of possible values

ServiceLevelCode

usps_priority

ups_second_day_air

this is an incomplete list of possible values

MarketingServiceLevel

Standard Shipping

Free Shipping

The shipping rate the customer chose at checkout

LineItemsCount

3

OrderStatusURL

https://your-store.com/9414996/orders/(ID)

A link to the customer facing Shopify branded orders status page

Substatus (optional)

package_departed

package_processing

this is an incomplete list of possible values

SubstatusMessage (optional)

"Arrived at regional sort facility."

A human readable message you can safely include in your email template, provided by the carrier

TrackingCode

1Z111111

TrackingURL

http://www.fedex.com/Tracking?language=english&tracknumbers=61290980851223631052

This will match the URL in the Shopify admin order screen

WondermentAdminShipmentPage

https://app.wonderment.com/shipment/1Z099693YW90060172

This is useful for internal notifications about specific shipments.

StorefrontTrackingURL

https://your-store.com/pages/tracking?search=AD-12345

This is useful for showing the entire status of orders for Shopify app block pages.

Address1

123 Apple Road

Shipping Address Line 1

Address2

Apt 16

Shipping Address Line 2

City

Boston

Shipping City

Country

USA

Shipping Country

ShippingFirstName

Sample

Shipping First Name

ShippingLastName

Customer

Shipping Last Name

Zip

02019

Shipping postal code

  1. You made it! Return to Wonderment and visit the Listrak integration screen: https://app.wonderment.com/settings/integrations/listrak
  2. Enter the client ID and secret into Wonderment that you got from Listrak earlier.
  3. Click save. You should see a success notification at the bottom of your screen.

Events will start flowing through for new shipment events - You can now go create your email templates.
